Generating Material Maps II: Creating Normal, Ambient Occlusion, and Roughness Maps

In this step-by-step tutorial, you’ll learn how to create Normal Maps, Ambient Occlusion Maps, and Roughness Maps starting from a seamless texture in Photoshop. These maps add depth, shadow, and material shine to your textures for more realistic 3D rendering.

Note: We will create the normal bump map outside of Photoshop using the free online tool Smart Normal. This platform provides an easy and efficient way to generate a normal map.

Step 1: Preparing Your Seamless Texture

1. Open your seamless texture file in Photoshop.
2. Ensure the texture is saved in 2048 x 2048 pixels for compatibility.

Step 2: Creating the Normal Map

1. Export Your Texture to an External Tool:
   • As the latest versions of Photoshop do not support creating Normal Maps, use free online tools like Smart Normal.
   • Upload your seamless texture to the tool.
2. Adjust the Settings:
   • Modify the Bias value of the Normal Map as needed for your project.
   • Preview the result and ensure it reflects the surface details correctly.
3. Download the Normal Map:
   • Save the file as a PNG for use in Expressa Configurator.

Step 3: Creating the Ambient Occlusion Map

1. Open the Seamless base color:
   • In Photoshop, open the base color image.
2. Desaturate the Image:
   • Click on the Adjustment Layer icon at the bottom of the Layers panel, select Hue/Saturation, and set the Saturation value to -100 to remove the color.
3. Adjust Levels:
   • Click on the Adjustment Layer icon at the bottom of the Layers panel, select Levels to enhance shadowed areas.
   • Focus on creating a grayscale version that emphasizes crevices and recessed parts of the texture, following the example in the video below.
4. Save the Map:
   • Save the file as a PNG for use in Expressa Configurator.

Step 4: Creating the Roughness Map

1. Open the Seamless base color:
   • In Photoshop, open the base color image.
2. Desaturate the Image:
   • Click on the Adjustment Layer icon at the bottom of the Layers panel, select Hue/Saturation, and set the Saturation value to -100 to remove the color.
3. Adjust Levels:
   • Click on the Adjustment Layer icon at the bottom of the Layers panel, select Levels, and adjust the levels until you achieve a grayscale that clearly highlights the folds and details of the texture, following the example in the video below.
4. Save the Map:
   • Export the file as a PNG.

Final Steps: Testing and Applying the Maps

1. Organize Your Maps:
   • Ensure each map (Normal, Ambient Occlusion, Roughness) is clearly labeled and saved in the same folder.

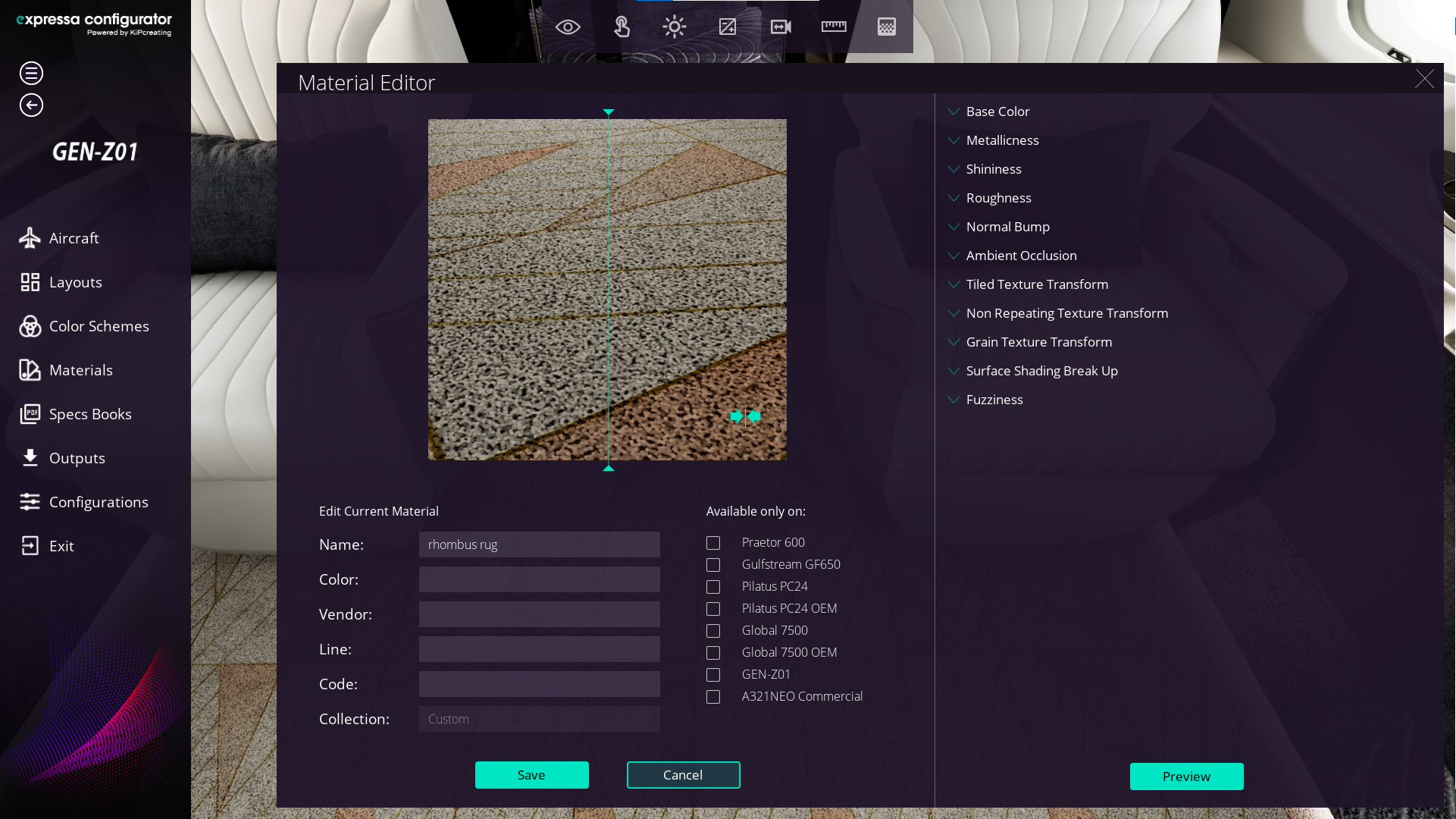

2. Import into Expressa Configurator:
   • Upload the maps into the configurator and test how they affect the appearance of your material.

By following these steps, you can create high-quality maps that bring your materials to life!
